Wrap Reel-Motorized

Wrap Reel-Motorized

33000 INR

Product Details:

  • Features Motorized operation, preset counter, smooth yarn guide, swift brake
  • Power Supply 230 V AC, 50 Hz single phase
  • Frequency 50 Hz
  • Specimen Size Yarn, sliver or filament up to 1 m length per hank
  • Accuracy 1% of set length
  • Display Type Analog revolution counter
  • Equipment Type Motorized Wrap Reel
  • Click to View more
X

Wrap Reel-Motorized Price And Quantity

  • 33000 INR
  • 1 Piece

Wrap Reel-Motorized Product Specifications

  • Motorized operation, preset counter, smooth yarn guide, swift brake
  • 5 reels/hanks simultaneously
  • Yarn, sliver or filament up to 1 m length per hank
  • 120 10 rpm
  • 50 Hz
  • 230 V AC, 50 Hz single phase
  • Table-top
  • Instant (mechanical counter)
  • Motorized Wrap Reel
  • 1 yard (36 inches standard swift circumference)
  • Motorized (automatic cycle with manual override)
  • Analog revolution counter
  • 1% of set length
  • Approx. 600 mm
  • Approx. 30 kg
  • 230 V AC
  • Up to 85% RH (non-condensing)
  • Up to 5 at once
  • Manual operation panel
  • 1 revolution
  • 5C to 40C operating
  • 1120 yards (presettable)
  • Textile laboratory and mills
  • Determining skein/hank length for yarn count
  • Up to 120 yards per test
  • Semi-automatic
  • Mild steel construction, powder coated
  • IS:1671, ASTM D1907, BS 2010
  • Below 55 dB
  • 1 Year warranty, on-site installation
  • 1 yard standard
  • Mechanical preset counter with auto stop
  • Industrial Blue / Grey
  • Stainless Steel
  • Detachable arms for easy specimen removal
  • Swift brake for emergency stop
  • Mild Steel, Powder Coated Finish

Wrap Reel-Motorized Trade Information

  • Cash Against Delivery (CAD), Cheque, Cash Advance (CA)
  • Per Month
  • Days
  • All India

Product Description

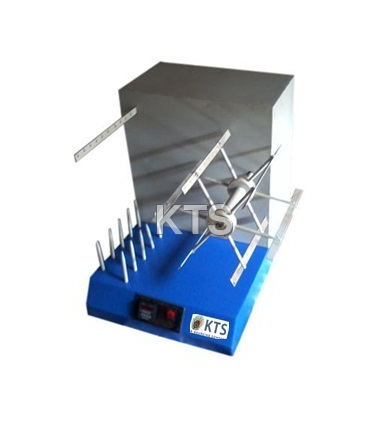

Wrap Reel-Motorized ITEM CODE: KTS 050M

MotorizedWrap Reel is used to wind yarn thread to a specified length, and then to test its strength of lea and quality. It can also be used for calculating the yarn count

Wrapping simultaneously 5 yarn hanks. Equipped with pre-determined digital counter (reel turns from 1 to 999).The moveable arm makes hanks removal easier. Steel-Aluminum frame. Motorized Wrap Reel for yarns with 1 meter reel circumference, equipped with digital speed counter. Automatic stop of the test. Operation at the same time 5 threads. Circumference1 M or 1.5 yard per 1 turn

WEIGHT Approx: 40Kg

DIMENSIONS:(L) 900 (P) 600 (H) 600 mm

POWERSUPPLY: 220 V 50/60 Hz monofase /singlephase

Standards: ISO 2060, DIN 53830, ASTM 1907 / 2260, IS 1315



Reliable and Precise Performance

The Wrap Reel delivers dependable and repeatable yarn measurement with an accuracy of 1% of the set length. Its motorized design ensures consistency, while the mechanical counter records each revolution instantly for easy monitoring. The test width and swift circumference are perfectly suited for laboratory and mill applications.


User-Friendly Operation and Safety

This device features a manual operation panel with accessible controls, making operation intuitive for laboratory staff. The built-in swift brake ensures immediate halting during emergencies, and the detachable reel holder streamlines specimen removal, boosting productivity and safety.


Engineered for Durability and Versatility

Crafted with a powder-coated mild steel body and stainless steel swift arms, the Wrap Reel stands up to rigorous use. Designed for a test speed of 120 10 rpm and optimal operation in demanding environments (5C to 40C and up to 85% RH), its the trusted choice for a variety of yarns, slivers, and filaments.

FAQs of Wrap Reel-Motorized:


Q: How does the Motorized Wrap Reel measure yarn length accurately?

A: The Wrap Reel uses a 1-yard standard swift circumference and a mechanical preset counter to ensure each revolution corresponds to an exact length. Accuracy is maintained within 1% of the set value, thanks to its robust construction and precise moving parts.

Q: What materials and specimen types can be tested with this Wrap Reel?

A: The Wrap Reel can handle yarn, sliver, or filament, accommodating specimen lengths up to 1 meter per hank. Its robust design allows simultaneous testing of up to 5 reels or hanks, making it suitable for a wide range of textile samples.

Q: When should the mechanical preset counter be used, and how does it benefit the process?

A: The mechanical preset counter is set before each test to the desired skein length (within the 1120 yard range). It automatically stops the machine upon reaching the target length, ensuring repeatability and removing the need for manual counting.

Q: Where can the motorized Wrap Reel be installed, and what is required for operation?

A: Designed as a tabletop device, the Wrap Reel fits easily in laboratory or mill settings. It requires a 230 V AC, 50 Hz single phase power supply and stable operating conditions between 5C40C temperature and up to 85% RH humidity.

Q: What is the process for mounting and using the Wrap Reel?

A: To use, mount the instrument on a sturdy table, load up to 5 specimens onto the detachable arms, preset the mechanical counter for the desired test length, and start the motorized cycle. Removal is simple due to detachable reel holders, and safety is ensured by the swift brake system.

Q: How does the swift brake enhance safety during operation?

A: The swift brake is designed for emergency stops. If an issue arises during testing, it immediately halts the reel, preventing accidents or specimen damage. This ensures maximum safety for operators in laboratory environments.

Q: What support and warranty are provided for the Wrap Reel?

A: The product includes a 1-year warranty, covering manufacturing defects. On-site installation support is also provided, ensuring seamless setup and operation for laboratories and mills across India.
